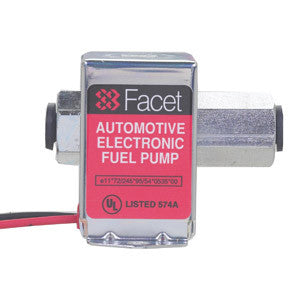

FuelPumper Facet 40376N Cube Solid State Fuel Pump, 12 Volt, 3.5-5.0 PSI, 19 GPH

This is a special order item that requires a minimum of 30 and 45-90 days to produce.

CROSS REFERENCE

• Facet 40376N, 40376
• Transfer Flow 200117177

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 3.0 - 5.5
• Gallon Flow Per Hour (GPH) - 19
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 60 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - Yes
• Positive Lead - Delphi
• Negative Lead - N/A
• External Filter - Facet FEP735 or FEP43175 74U Filter

For moderate needs up to about 150 horsepower, the Solid State fuel pump is sufficient.  Pumps can also be combined in series or parallel to achieve any required pressure or flow.

Facet fuel pumps have low power requirements (about 1 amp at 12 volts) and operate without troublesome seals or diaphragms. Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

Built-in pressure relief means no flooding after shutting down a hot engine.  Fuel flows in either direction when the pump is turned off.

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
