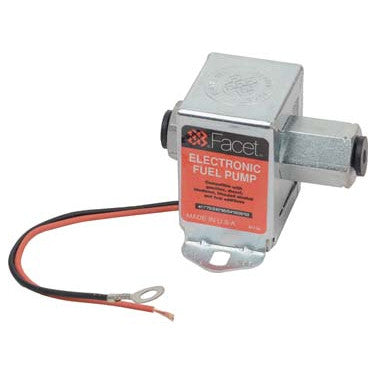

FuelPumper Facet 40288N Cube Solid State Fuel Pump, 12 Volt, 3.0-4.5 PSI, 30 GPH

This is a special order pump that requires a minimum order of 30 units and 45-60 days to produce.

Possible Alternative - FuelPumper Facet 60301N, which is similar with more lift.

CROSS REFERENCE

• Facet 40288, 40288N
• NAPA/Balkamp 610-2001
• Seachoice (Land n Sea) 20341

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 3.0 - 4.5
• Gallon Flow Per Hour (GPH) - 30
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 60 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - No
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74 Micron Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
