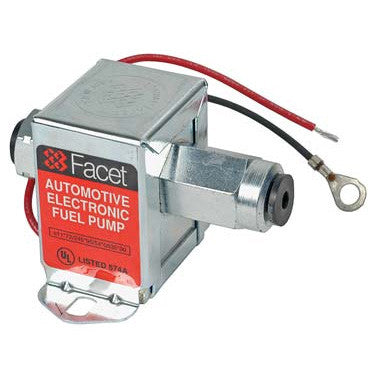

FuelPumper Facet 40257N Cube Solid State Fuel Pump, 12 Volt, 9.0-11.5 PSI, 25 GPH

This is a special order pumps that requires a minimum order of 15 units and 45-70 days to produce.

You might consider the FuelPumper Facet 40185N, which has similar specifications with more flow.

CROSS REFERENCE

• Facet 40257, 40257N
• International Thermal 16015

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 9.0 - 11.5
• Gallon Flow Per Hour (GPH) - 25
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 96 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - Yes
• Positive Lead - N/A
• Negative Lead - N/A
• External Filter - Facet FEP735 or FEP43175 74 Micron Filter

We only sell Genuine Facet pumps.  Beware unreliable foreign knock-offs.  Made in the USA.
