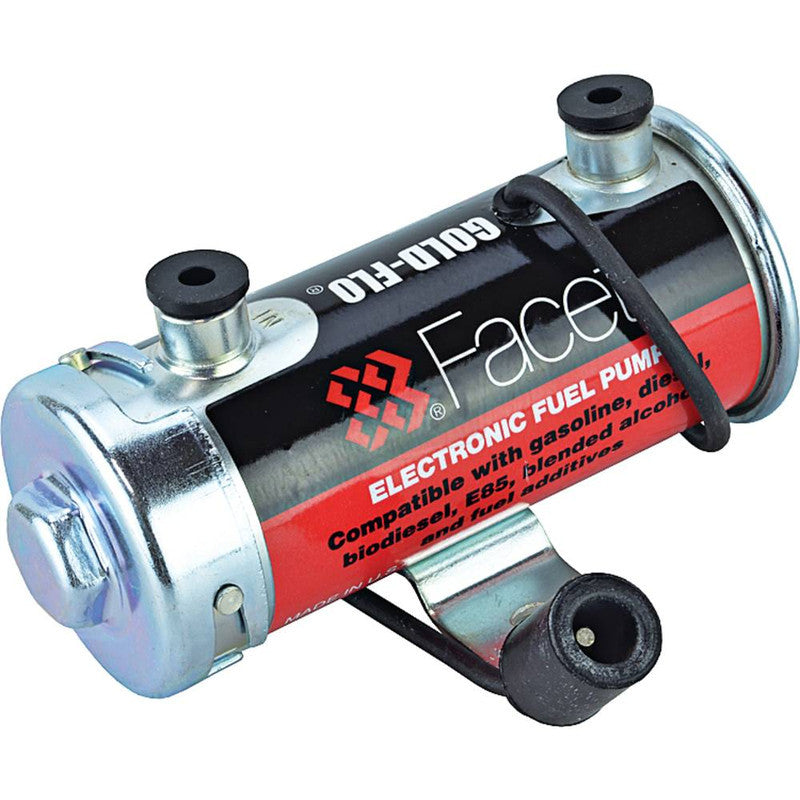

FuelPumper Facet 40255N Gold-Flo Fuel Pump, 24 Volt, 4.0-7.0 PSI, 32 GPH

Normally ships same day.

Possible Alternative - FuelPumper Facet 477003N, which is similar with a llittle more pressure and flow.

CROSS REFERENCE

• Facet 40255E, 40255N, 40255
• Hunter (HDT) 40221

• For fuel volume requirements up to about 200 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 24 Volts
• Shut-Off Pressure (PSI) - 4.0 - 7.0
• Gallon Flow Per Hour (GPH) - 32
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 36 Inch / 91.44 cm
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - Packard 0.25 Inch Connector
• Negative Lead - N/A
• External Filter - Facet 479729 or FEP42370 74U Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
