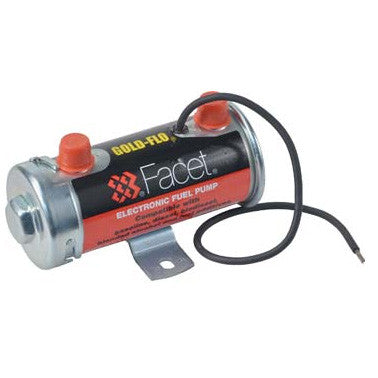

FuelPumper Facet 40220N Gold-Flo Fuel Pump, 12 Volt, 4.0-5.5 PSI, 36 GPH

This is a special order pump that requires a minimum order of 15 and 45-60 days to produce.

You might consider the FuelPumper Facet 476087N, which has similar specifications.

CROSS REFERENCE

• Facet 40220E, 40161
• Case New Holland 82006984
• National Military 2910013184196
• Stewart & Stevenson 99525

FEATURES

• For fuel volume requirements up to about 200 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• Built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 4.0 - 5.5
• Gallon Flow Per Hour (GPH) - 36
• Fitting Size - 1/4-18 Internal
• Minimum Dry Lift - 24 Inch
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - Amp
• Negative Lead - N/A
• Internal Filter - Facet 479808 400 Micron Filter

We only sell Genuine Facet pumps.  Beware unreliable foreign knock-offs.  Made in the USA.
