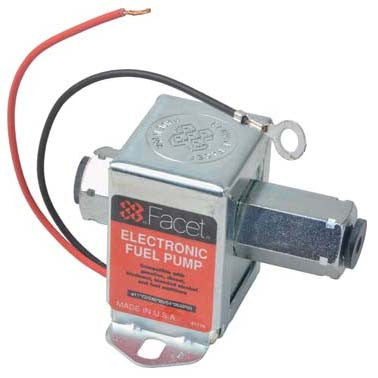

FuelPumper Facet 40194N Cube Solid State Fuel Pump, 24 Volt, 5.0-6.5 PSI, 23 GPH

Normally ships same day.

CROSS REFERENCE

• Facet 40194
• DRS Fermont 88-21738
• Libby 88-21738
• National Military 2910-01-470-7423, 2910-01-366-7293, 88-21738

• Voltage - 24 Volts
• Shut-Off Pressure (PSI) - 5.0 - 6.5
• Gallon Flow Per Hour (GPH) - 23
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 60 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - Yes
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

For moderate needs up to about 150 horsepower, the Solid State fuel pump is sufficient.  Pumps can also be combined in series or parallel to achieve any required pressure or flow.

Facet fuel pumps have low power requirements (about 1 amp at 12 volts) and operate without troublesome seals or diaphragms. Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

Built-in pressure relief means no flooding after shutting down a hot engine.  Check valve assures that fuel flows in either direction when the pump is turned off.

Beware unreliable foreign knock-offs.  FuelPumper Facet pumps are made in the USA.

When crossing the 2910-01-470-7423 / 88-22546, you must modify the pump according to the drawing enclosed in the box in order to have the proper finished product.
