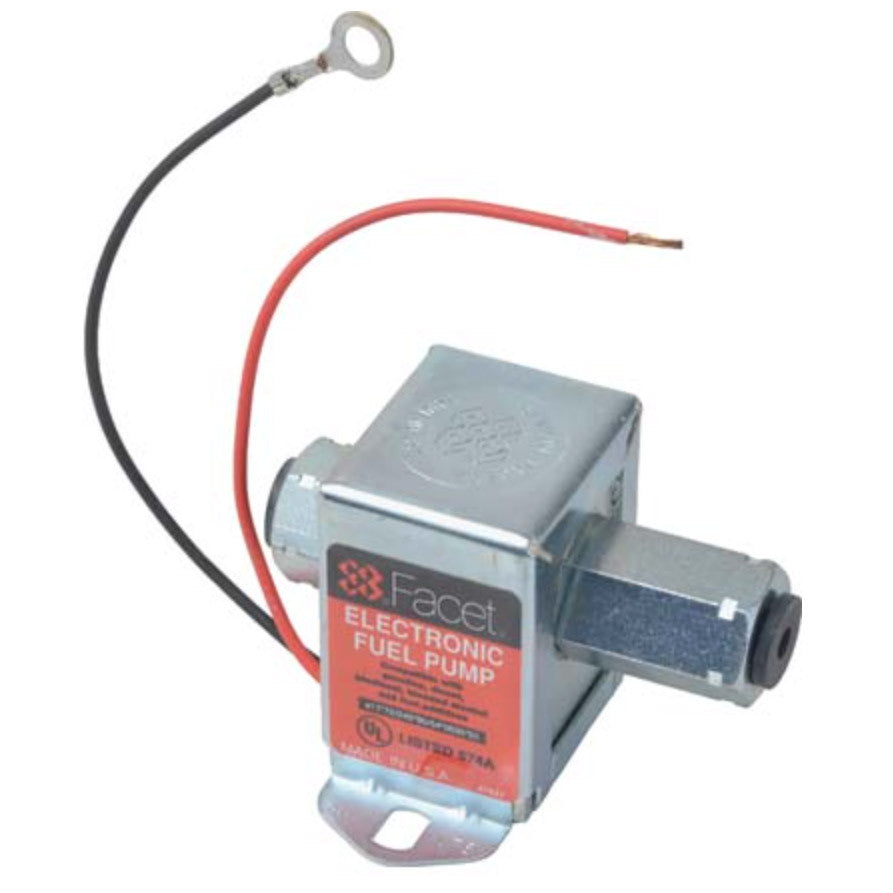

FuelPumper Facet 40178N Cube Solid State Fuel Pump, 12 Volt, 2.0-3.5 PSI, 15 GPH

Normally ships same day.

CROSS REFERENCE

• Facet 40178
• Automotive Controls EP-7220, EP-7221
• Federal Mogul P70090, P70091
• Freightliner FEP480598
• Gehl 77663
• Kohler 249862, 278490
• Metrix Parts 322-49-09
• NAPA/Balkamp610-2403
• Stewart & Stevenson 99942
• Tennant 59945, 61961
• Whiteman 11099

Can replace Facet 40160, 40171, 40205, 40217.  Can replace 40241 except that it lacks the flare fitting.

FEATURES

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

SPECIFICATIONS

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 2.0 - 3.5
• Gallon Flow Per Hour (GPH) - 15
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 40 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - Yes
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

We only sell Genuine Facet pumps.  Beware unreliable foreign knock-offs.  Made in the USA.
