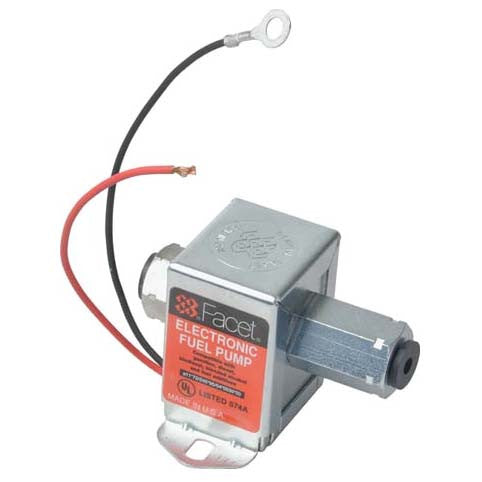

FuelPumper Facet 40177N Cube Solid State Fuel Pump, 12 Volt, 1.0-2.0 PSI, 7 GPH

Normally ships same day.

CROSS REFERENCE

• Facet 40177, 40226, 40256, 40177N, 40226N, 40256N
• Heckendorn 200225
• Kohler 2539301
• Miller Electric 192093
• MultiQuip VR36
• Textron Turf (Jacobson) 1002889

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 1.0 - 2.0
• Gallon Flow Per Hour (GPH) - 7
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 40Inch
• Check Valve - Yes
• Positive Shut-Off Valve - Yes
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet pumps are made in the USA.
