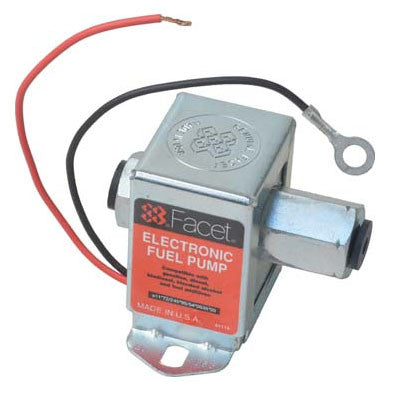

FuelPumper Facet 40163N Cube Solid State Fuel Pump, 12 Volt, 1.5-2.5 PSI, 17 GPH

This is a special order pump that requires 30 units and 45-60 days to produce.

CROSS REFERENCE

• Facet 40163, 40226
• Hotsy 919718
• Professional Chem 41-809003

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 1.5 - 2.5
• Gallon Flow Per Hour (GPH) - 17
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 40 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - No
• Positive Lead - 0.25 Blade
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
