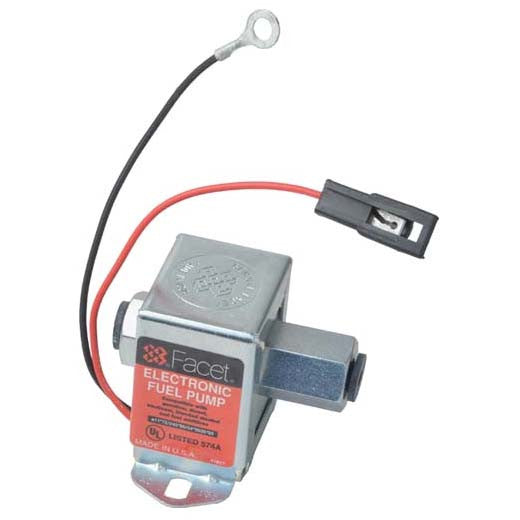

FuelPumper Facet 40135N Cube Solid State Fuel Pump, 12 Volt, 4.0-7.0 PSI, 32 GPH, Packard Connector

Normally ships same day.

Possible Alternative - FuelPumper Facet 40106N, which has similar specifications.

CROSS REFERENCE

• Facet 40135
• Clark 901431
• Dresser Industries 153879C1, H81-335-1
• Fermont Division (DRS) 405789-001, 406770-001
• IMC Holdings 92-179
• John Deere AH130127, AH107362, AH66236, AH66237, AM38788
• Kalmar AC78628531
• Samsung America 910431
• Teledyne Wis-Con Motors TMD27F00319, TMD27F00424
• Tennant 910431
• Toro 46-6320, 46-6310
• Two Stroke International 46-6310, 46-6320
• U.S. Motors 90081
• Westerbeke 34705

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 4.0 - 7.0
• Gallon Flow Per Hour (GPH) - 32
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 36 Inch
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - Packard 0.25 Inch Connector
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
