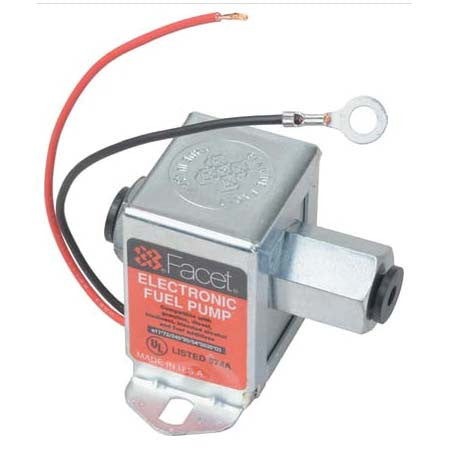

FuelPumper Facet 40107N Cube Solid State Fuel Pump, 12 Volt, 7.0-10.0 PSI, 34 GPH

This is a special order item that requires a minimum of 30 and 45-90 days to produce.

Possible Alternative - FuelPumper Facet 60303N, which is similar with more lift and a check valve.

CROSS REFERENCE

• Facet 40118, 40103, 40107
• Dave Bean Engine 706L6001
• HC Cargo 070027
• Ingram 871953
• Textron Turf (Jacobson) 163574
• NAPA/Balkamp 610-1049

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 7.0 - 10.0
• Gallon Flow Per Hour (GPH) - 34
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 24 Inch / 60.96 cm
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

We only sell Genuine Facet pumps.  Beware unreliable foreign knock-offs.  Made in the USA.
