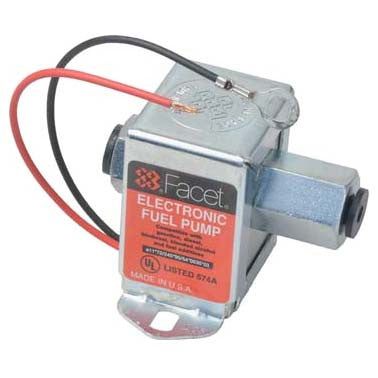

FuelPumper Facet 40105N Cube Solid State Fuel Pump, 12 Volt, 3.0-4.5 PSI, 30 GPH

Normally ships same day.

Possible Alternative - FuelPumper Facet 40288N, which has similar specifications.

CROSS REFERENCE

• Facet 40105, 40101, 480615
• AC Rochester 25115828
• ACSA Park EP12, FP42E
• AED Pry 132-01-105
• Amida 660320
• Amsco Valley Forge FP1
• APSCO 152-107
• Ashdown 27-20595
• Atlantic Pacific Auto (DYK) EP42S
• Automotive Accessories E-16
• Beck Arnley 1520576
• BTR 480615
• Bobcat 6558398
• BTR Engineering 480615
• Carquest 41500
• Case New Holland D72347
• Chrysler M&I 4417200
• Clark 6558398
• Dave Bean Engine 536L6001
• Dee Engineering 1008-001
• EAP Automotive EFPK-1
• EMPI 480615, 41-2000-8
• Federal Mogul P55468
• HC Cargo 07001
• H&H Distributors 480615
• Huzzells I Karlstad 67-40105
• IAP West AC127200B
• Ingram 871950
• Ignition & Fuel Systems EFP16S
• Interamerican Motor 750 0615
• ITM Automotive 37-19800
• Johnny's Speed 5620
• Kem EFP-15
• Lister Petter 000-01366
• Melroe 6558398
• Metrix Parts 323-90-03
• MI T-M Corporation 3-0178
• Pacific Automotive 480615, FP42
• Standard Motor EFP19S
• WAWD-EAP 7304815
• WorldPac 40105

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 3.0 - 4.5
• Gallon Flow Per Hour (GPH) - 30

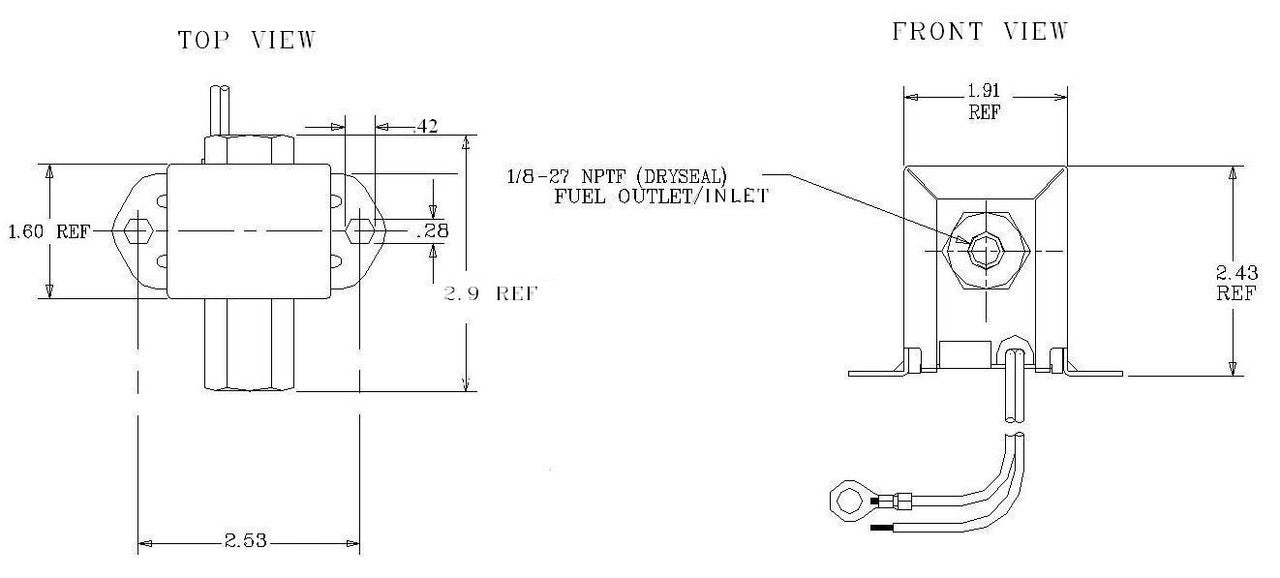

• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 36 Inch / 91.44 cm
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet pumps are made in the USA.
