FuelPumper Facet 40104N Cube Solid State Fuel Pump, 12 Volt, 1.5-4.0 PSI, 25 GPH

Normally ships same day.

CROSS REFERENCE

• Facet 40104N, 40104, 3629674, 3797522, 4299544, 4306842
• AC Rochester 6442720, 25115829
• Allmand Brothers 930149
• Amsco Valley Forge FP2
• APSCO 152-0568, 984-8725
• Ashdown Industries 27-20593
• Atlantic Pacific Auto (DYK) EP14S, EP19S, EP43S
• Automotive Access E-10, E-14, E-19, E-304
• Automotive Controls EP-7213, EP-7215, EP-7224
• Beck Arnley 1520568, 1520659, 1520725
• Carquest 41501
• Carter P74021
• Ditch Witch 195-1310
• EAP Automotive EFPK-2
• EMPI 480614
• Federal Mogul P55466, P55467, P72001, P72008
• Ford BD97Z9350A, D57Z9350A, D97Z9850A
• H&H Distributors 48061
• HC Cargo 070052
• Grove/Kidde 7722000212
• Honda 16700-890-670
• Interamerican Motor 750 0614
• ITM Automotive 37-11901/02, 37-19898, 37-10002, 37-10002/3, 37-10002/3/5
• John Deere GG420-34103
• Jacobson/Textron 26057G01, 163603
• Metrix Parts 322-44-02, 322-40-03, 322-40-20, 323-90-01
• NAPA/Balkamp 610-1052, 610-1078
• Owatonna 420-34511
• P.K. Lindsay 800-142
• Pacific Automotive 480614
• Textron Turf (Jacobson) 163603, 26057G01
• Toro 2910009309367
• Wawd-EAP EFP19S
• WorldPac 40104, 40114

FEATURES

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 1.5 - 4.0
• Gallon Flow Per Hour (GPH) - 25

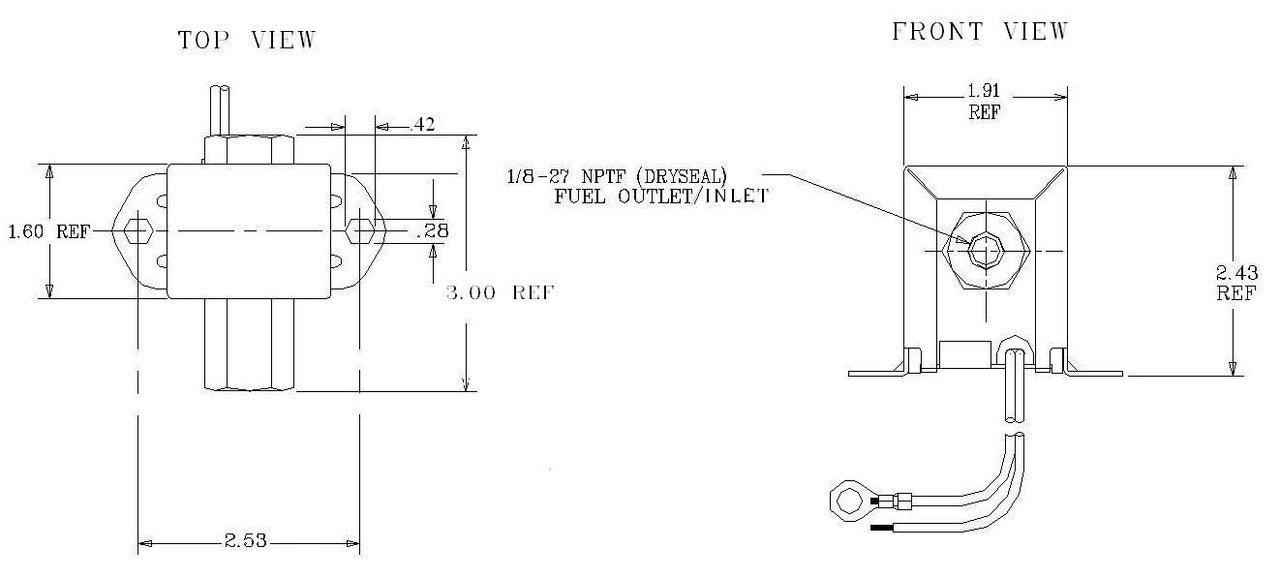

• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 36 Inch / 91.44 cm
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
