FuelPumper Facet 40100N Kit for Cube 40106 Fuel Pumps

Normally ships same day. You might consider the FEP12SV, which is identical in a different package.  Find it here.

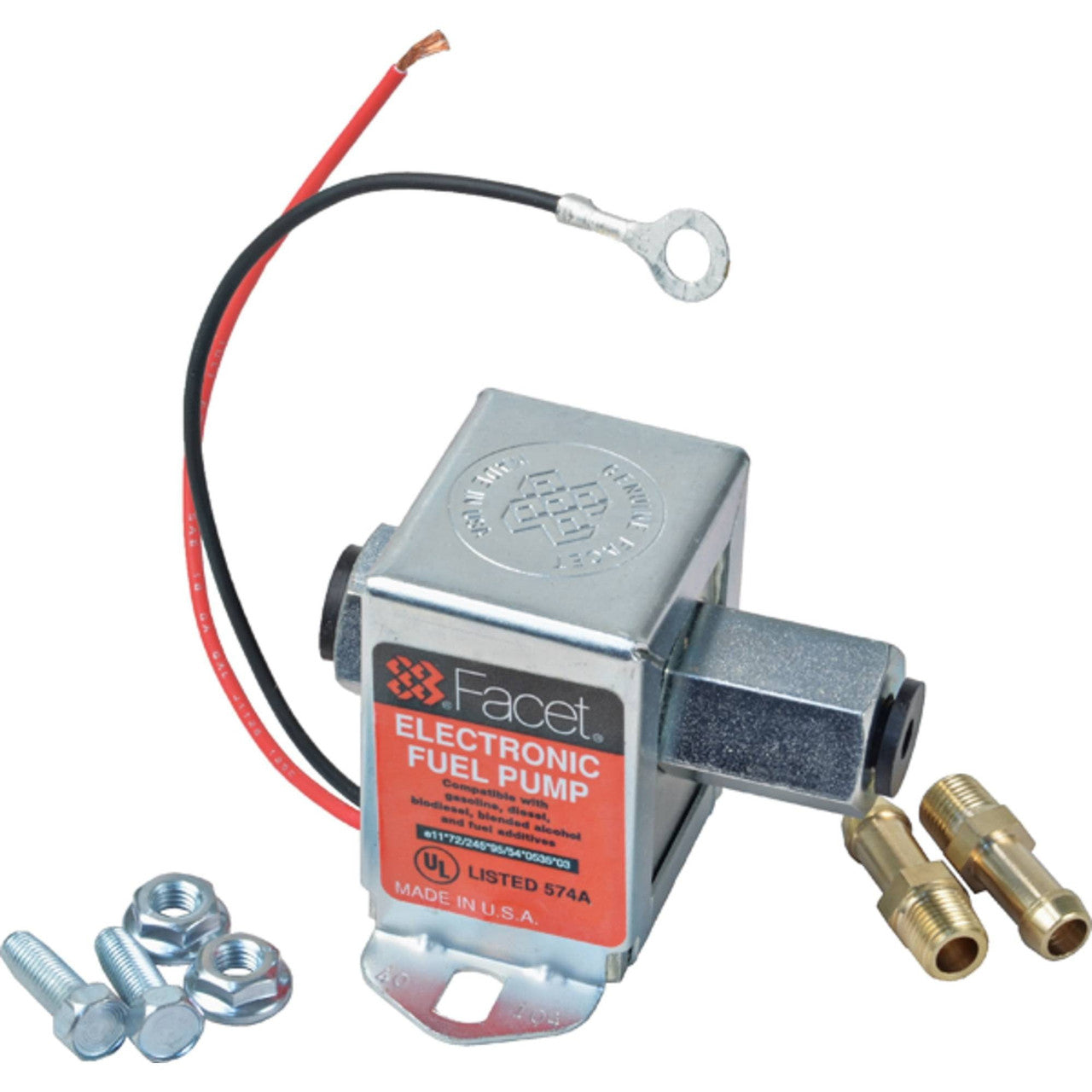

The kit includes one 40106 fuel pump, mounting hardware, a 5/16 barbed outlet fitting, and a FEP735 74 micron inlet filter with a 5/16" hose barb.

CROSS REFERENCE

• Facet 40106, 40100, 480616, BTR 480616, FEP12SV, 40106N
• ACSA Park FP12E
• AED Pry 132-01-106
• Ashdown Industries 27-20594
• Atlantic Pacific Auto (DYK) EP12S
• Automotive Access E-12
• Beck Arnley 1520584
• BTR Engineering 480616
• Carquest 41500
• Case New Holland 175305C1, S226800, XN655395
• Crusader 80784, EMPI 480616
• EAP Automotive EFPK-3
• EMPI 480616
• Federal Mogul P55469
• Federal Signal O/LO15951-001
• Ford XN655395
• HC Cargo 070051
• Hunter (HDT) 53020
• Huzzells I Karlstad 67-40106
• Hydra-Mac 4100-037
• Ingram 871951
• Interamerican Motor 750 0616
• ITM Automotive 37-19899
• John Deere AH65307
• Kem EFP-16W
• Metrix Parts 323-90-05
• Mikuni Z70/061
• Military NSN 2910-01-564-8816
• NAPA/Balkamp 610-1077
• Navistar 153879C1, 175305C1
• Orbitrade AB268500
• Pacific Automotive 480616, FP12E
• Pierce EP13, EP12E
• SSP Outsourcing 31-1818310
• Standard Motor EFP13S
• Teleflex 908112
• Tennant 54230
• Tymco 4203
• Visi Flash PD5129
• White Farm Equipment 31-1818310
• Winco 92766-000
• WorldPac 40106

• For fuel volume requirements up to about 150 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• The built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 4.0 - 7.0
• Gallon Flow Per Hour (GPH) - 32
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 36 Inch / 91.44 cm
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
