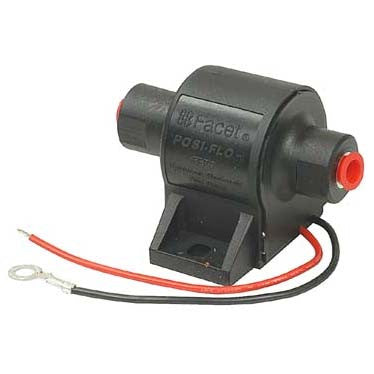

FuelPumper Facet 60104N Posi-Flo Fuel Pump, 12 Volt, 1.5-4.0 PSI, 23 GPH

This is a special order pump.  We recommend the FEP04SV, which includes the 60104N plus filter and mounting hardware.

You might also consider the FuelPumper Facet 40104N, which has the same specifications.  Order it here

CROSS REFERENCE

• Facet FEP04SV, PRO04SV, 60104, 60245, 40104, 40105, 50104, 60245
• Ashdown Industries 27-20693B
• Carquest 41509, K&N SPE-2525
• Carter P74021
• K&N SPE-2525
• Mr. Gasket 42S
• MultiQuip 616450
• NAPA/Balkamp 610-1051

SPECIFICATIONS

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 1.5 - 4.0
• Gallon Flow Per Hour (GPH) - 25
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 36 Inch / 91.44 cm
• Check Valve - No
• Positive Shut-Off Valve - No
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

Facet fuel pumps have low power requirements of about 1.5 amp at 12 volts.  They operate without seals or diaphragms.  Pressure relief is built in to prevent flooding when shutting down a hot engine.  Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

Fuel can be pulled in either direction when the pump is turned off.

We only sell Genuine Facet pumps.  Beware unreliable foreign knock-offs.  Made in the USA.
