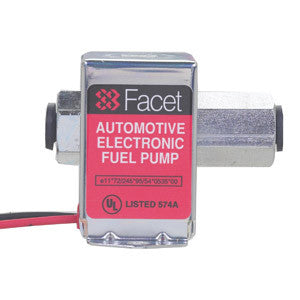

FuelPumper Facet 40311N Solid State Cube Fuel Pump, 12 Volt, 2.0-4.5 PSI, 30 GPH

This is a special order pump that requires a minimum order of 30 and 45-90 days to produce.

You might consider the 40104N, which is similar but lacks a Deutsch connector.

CROSS REFERENCE

• Facet 40311
• JCB 333/W8991
• NAPA/Balkamp 610-1688

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 1.5 - 4.0
• Gallon Flow Per Hour (GPH) - 28
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 60 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - No
• Positive Lead - Deutsch
• Negative Lead - N/A
• External Filter - Facet FEP735 or FEP43175 74U Filter

For moderate needs up to about 150 horsepower, the Solid State fuel pump is sufficient.  Pumps can also be combined in series or parallel to achieve any required pressure or flow.

Facet fuel pumps have low power requirements (about 1 amp at 12 volts) and operate without troublesome seals or diaphragms. Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

Built-in pressure relief means no flooding after shutting down a hot engine.  Check valve assures that fuel flows in either direction when the pump is turned off.

We only sell Genuine Facet pumps.  Beware unreliable foreign knock-offs.  Made in the USA.
