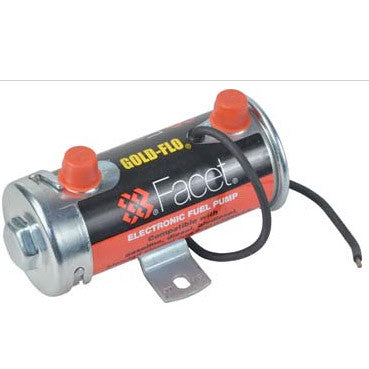

FuelPumper Facet 480509F Gold-Flo Fuel Pump, 24 Volt, 4.0-8.0 PSI, 33 GPH

This is a special order pump that requires a minimum order of 15 and 45-90 days to produce.

CROSS REFERENCE

• Facet 480509E, 480509, 480509F
• AM General 7748814
• Harsco 323-0191-88
• Hunter (HDT) 7748814
• Napco International 2910000730165
• National Military 2910-00-073-0165, 7748814, 7392887, 72-5313

• For fuel volume requirements up to about 200 horsepower.
• Can also be combined in series or parallel to achieve any required pressure or flow.
• Low power requirements (about 1 amp at 12 volts), and seals or diaphragms are not required.
• Built-in pressure relief means no flooding after shutting down a hot engine.
• Compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
• Fuel can flow in either direction when the pump is turned off.

• Voltage - 24 Volts
• Shut-Off Pressure (PSI) - 4.0 - 8.0
• Gallon Flow Per Hour (GPH) - 33
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 12 Inch
• Check Valve - No
• Positive Shut-Off Valve - No
• Internal EMI Filter
• Negative Lead - N/A
• Internal Filter - Facet 479729 or FEP42370 74 Micron

We only sell Genuine Facet pumps.  Beware unreliable foreign knock-offs.  Made in the USA.
