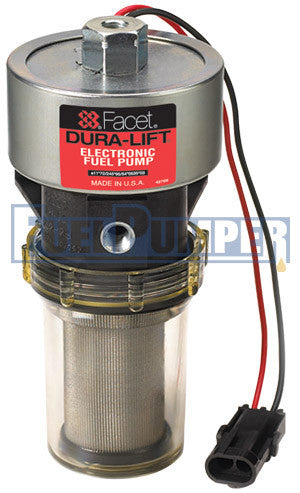

FuelPumper Facet 40295N Dura-Lift Fuel Pump, 12 Volt, 9.0-11.5 PSI, 33 GPH

This is a special order pump.  You might consider the FuelPumper Facet 40223N, which is similar but lacks steel internals.  If you still prefer the 40295N, it requires a minimum order of 12 and 45-90 days to produce.

CROSS REFERENCE

• Facet 40295

FEATURES

Facet Dura-Lift pumps draw fuel from much farther down than standard Facet pumps. Their high vertical lift enables feeding a tank located more than two to three feet below the main pump.

• Pump measures 8" high with 3 1/4" outside diameter. A 2-bolt mounting flange is molded into the nylon body.
• The 80 micron screen intake filter can be removed for easy cleaning.
• The clear bowl shows filter condition any fuel sediment.
• 2-pin (shroud) Weather Pack connector.
• High vertical lift makes them ideal when the tank is more than two to three feet below the pump.
• Fully compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

SPECIFICATIONS

• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 9.0 - 11.5
• Gallon Flow Per Hour (GPH) - 33
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 60 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - No
• Connector - Packard 0.25 Connector
• Internal Filter - Facet 42353 80 Micron Stainless Steel

Beware unreliable foreign knock-offs.  FuelPumper Facet fuel pumps are made in the USA.
