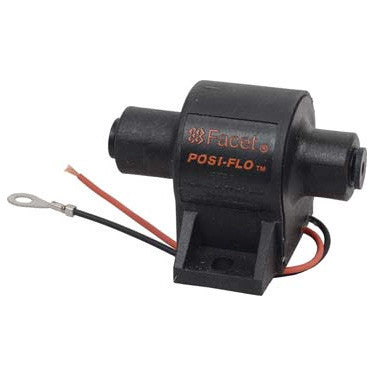

FuelPumper Facet 60300N Posi-Flo Fuel Pump, 12 Volt, 2.5-4.0 PSI, 20 GPH

Normally ships same day.

Possible Alternative - FuelPumper Facet 60301N is similar but has slightly more flow and pressure.

CROSS REFERENCE

• Facet 60300, 60300N
• FulTyme RV 4503
• NAPA/Balkamp 610-2004


• Voltage - 12 Volts
• Shut-Off Pressure (PSI) - 2.5 - 4.0
• Gallon Flow Per Hour (GPH) - 20
• Fitting Size - 1/8-27 Internal
• Minimum Dry Lift - 60 Inch
• Check Valve - Yes
• Positive Shut-Off Valve - No
• Positive Lead - N/A
• Negative Lead - 0.25 Inch Ring Terminal
• External Filter - Facet FEP735 or FEP43175 74U Filter

For moderate needs up to about 100 horsepower, the Posi-Flo fuel pump is adequate.

Facet fuel pumps have low power requirements of about 1.5 amp at 12 volts.  They operate without seals or diaphragms.  Pressure relief is built in to prevent flooding when shutting down a hot engine.  Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

Check valve assures that fuel can be pulled in only one direction when the pump is turned off.

Beware unreliable foreign knock-offs.  FuelPumper Facet pumps are made in the USA.
